Endian firewall Open source UTM instalation

• Endian firewall features
• Unified Threat Management (UTM) appliances
• inspection firewall
• proxy server
• Gansgardian bace web filtering
• VPN, gateway
• Anty virus, anti-spam
• web security
• Instant Recovery

Hardware specifications

• CPU:
  Intel x86 compatible (500MHz minimum, 1GHz recommended), including VIA, AMD Athlon, Athlon 64, Opteron, Intel Core 2 Duo, Xeon, Pentium and Celeron processors
• Multi-Processor:
  Symmetric multi-Processor (SMP) support included
• RAM:
  256MB minimum (512MB recommended)
• Disk:
  SCSI, SATA, SAS or IDE disk is required (4GB minimum)
• Software RAID:
  For software RAID1 (mirroring) two disks of the same type (the capacity needn't be the same) are required
• CDROM:
  An IDE, SCSI or USB CDROM drive is required for installation (not required after installation)
• Network Cards:
  Most common Network Interface Cards are supported including Gigabit and fiber NICs
• Monitor/Keyboard:
  Only required for the installation but not for configuration and use
• Operating System:
  Endian Firewall includes a Hardened Linux Based Operating System

This links for  download endian firewall   or you can go directly to below web site
 http://www.endian.com
 Endian Firewall Community Download

installation steps

01 please follow up the  below video  for first installation

 you can defined the main local ip addess and sub net marsk





finally it'll appear the installation completed windows like that it

 after reboot the server endian firewall appear the link for configuration






        simply you can log in to endian server

https://ipaddress:10443
exalmple
https://192.168.100.235:10443


that window you have to select region

 if you have backup of endian you can restore form that time

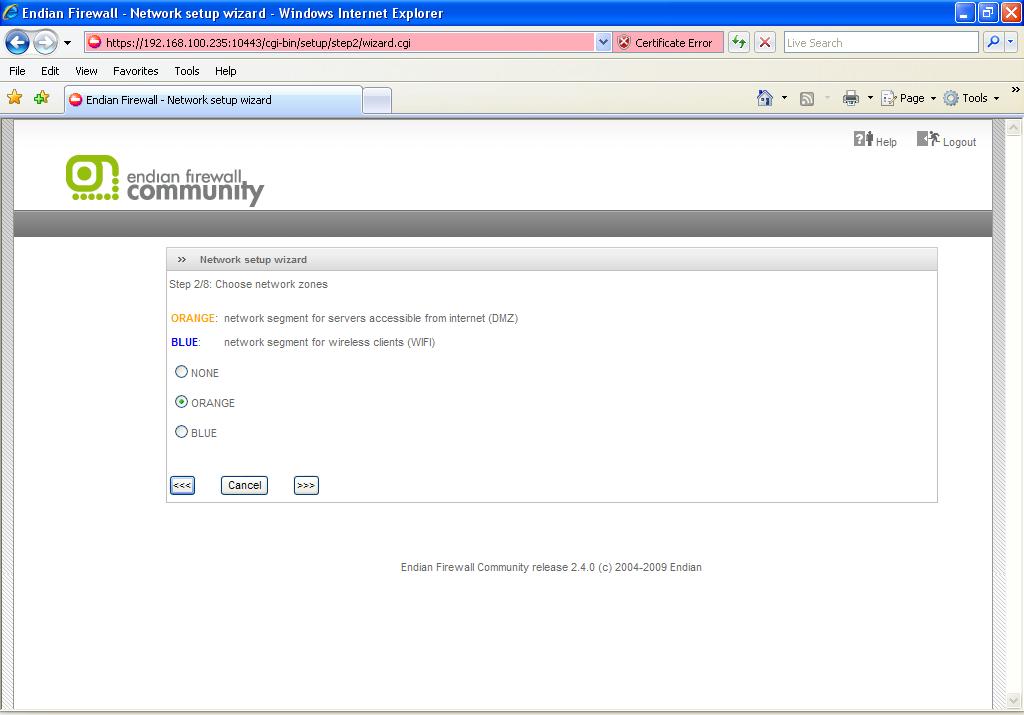

in there you can assign  DMZ port in there i installed with 3 network card
Uplink(ADSL)                                                 RED INTERFACE
LAN (192.168.100.0 range)                           GREEN INTERFACE
DMZ network card  that used for web server  ORANGE INTERFACE

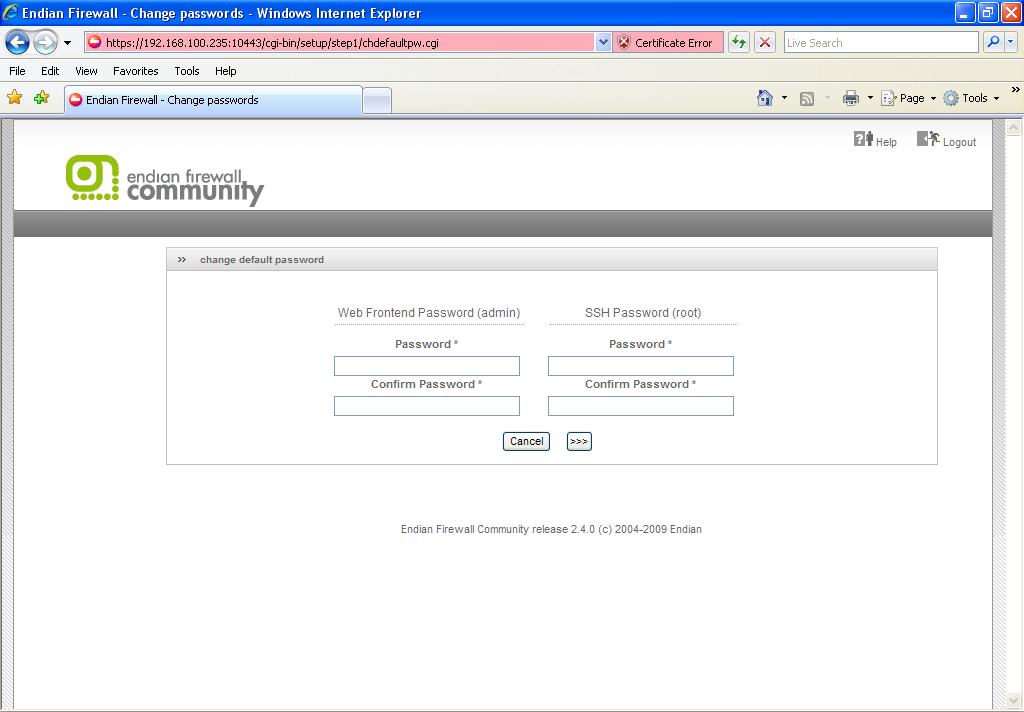

this is you can configure password for web login and ssh






this is red interface ip assign step in hire i configure as DHCP because   it directly connect to adsl router
in there you can endian administration login

configure the DMZ  ip addressees








RED Interface selection menu

Finally it'll applier endian dashboard like that

Configuration endian as proxy server

when you are going to configure you better to enable antivirus features and IPS in endian it free UTM features  for more details see the photos

Now you can create rule for your network users to access  websites

01 move to  Contentfilter and Create a profile
ex   Content Filtering ,URL Blacklisting






Configuration endian as firewall  in that window you can create rules with Port

Forwarding /Destination NAT  = create rule for web server mail server (external traffic to internal NAT)
Outgoing Traffic  =  Internal users allow to use internet (Internal Traffic to external NAT )
Inter zone Traffic  = manly that is mention  to route traffic from DMZ to LAN or LAN to DMZ
                              Ex - internal users access there web site or some in dmz zone server access LAN












it is a backup and restore window  there you can create schedule backup or manual backup in addition it give that backup files send it your mailbox
